INCONNECT Daisy Chain Dual Zone DRUM TRIGGER

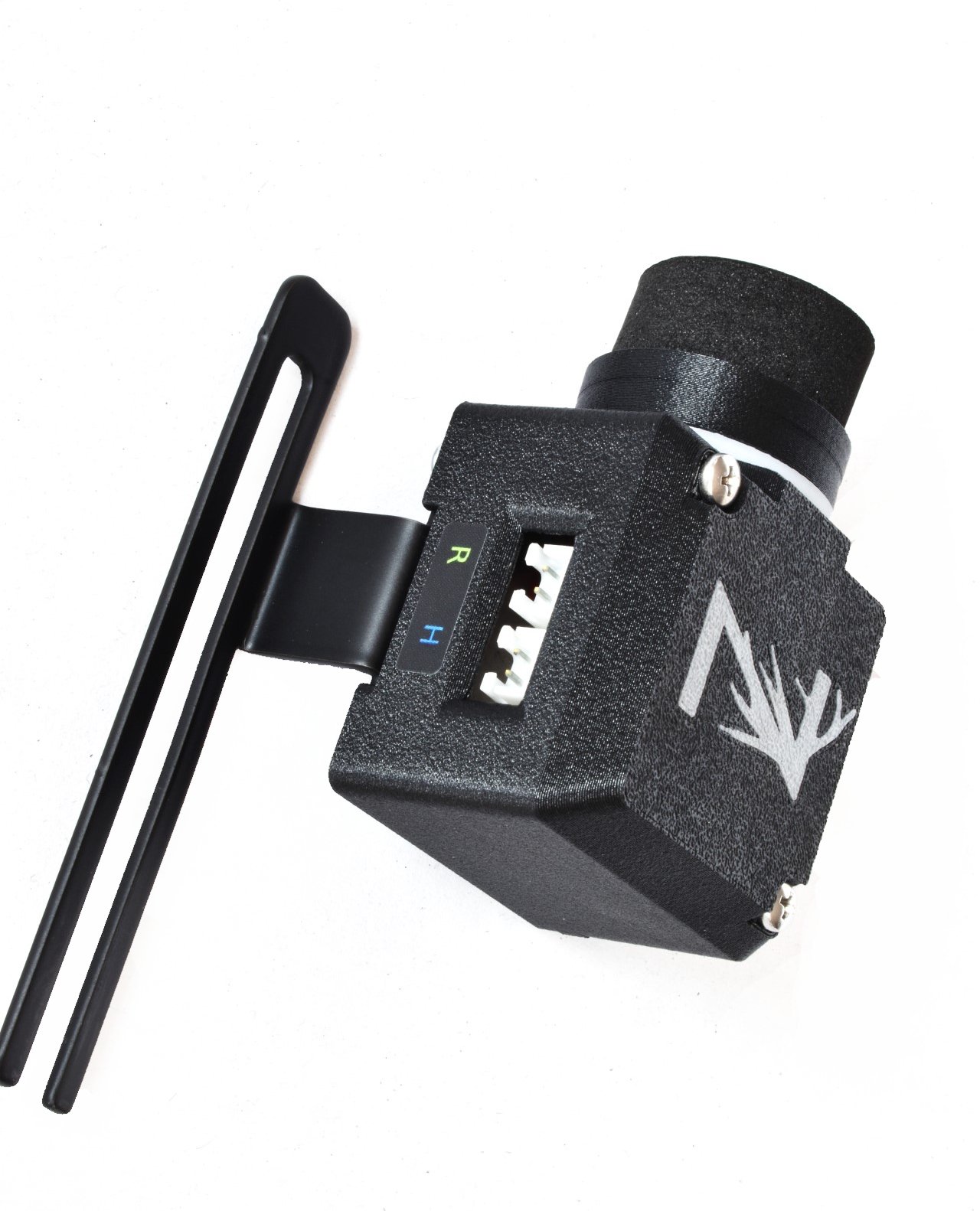

Modular Dual-Zone Internal Drum Trigger
This internal trigger is designed as a fully modular solution for precise and flexible drum triggering. Each unit operates as a true dual-zone trigger (head and rim) out of the box, delivering accurate and consistent response across the entire playing surface.

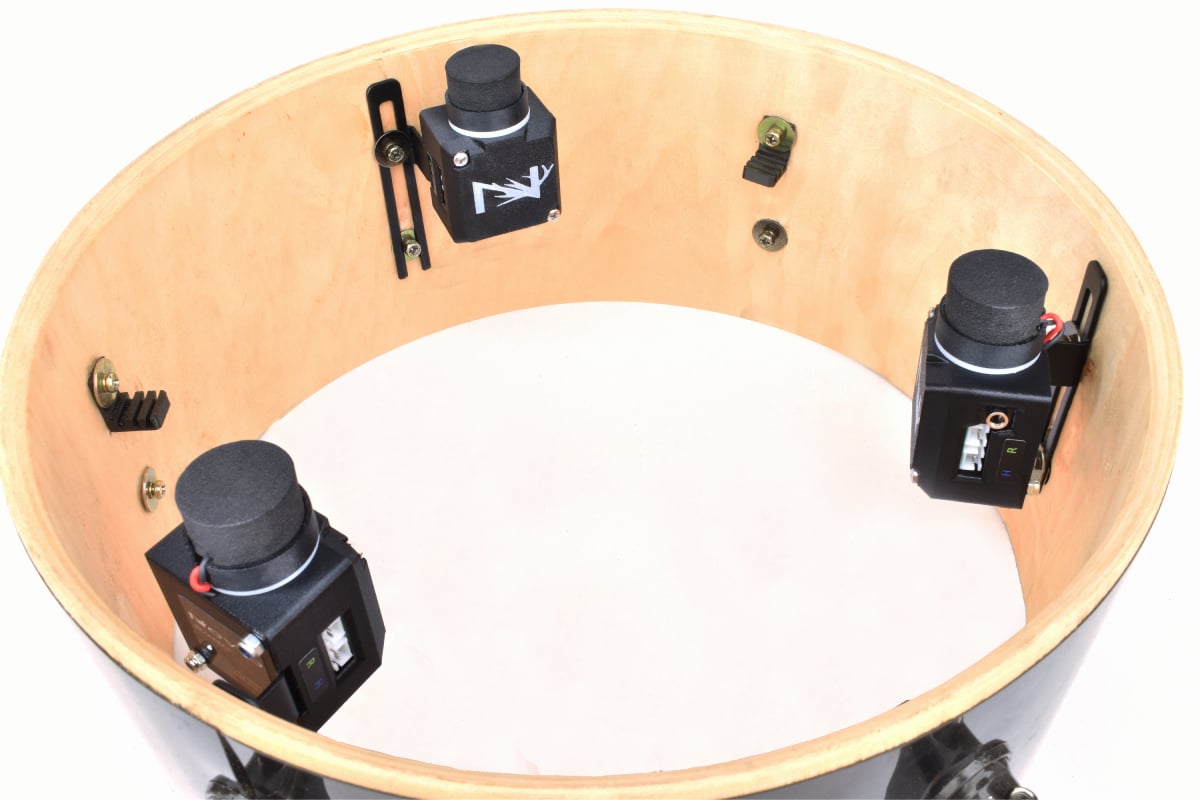

The system supports internal daisy chaining within the same drum shell, allowing multiple triggers to be connected together. Daisy chaining can be configured either by combining the dual-zone signals or by routing head and rim zones independently, depending on the user’s setup and requirements.
For expanded modularity, the rim zone can also be connected to a dedicated stand-alone rim sensor (rim sensor extension), sold separately. This allows users to enhance rim sensitivity, adjust rim positioning, or add additional rim sensing points without modifying or replacing the original trigger.
This architecture enables drummers to start with a single dual-zone internal trigger and progressively expand their setup over time — adding extra internal triggers or rim extensions as needed — all within the same drum and without removing existing components.
Built for reliability, consistency, and long-term scalability, this system offers a future-proof internal triggering solution for demanding players, studios, and touring applications.
- True dual-zone trigger – head and rim response out of the box
- Internal daisy chaining – connect multiple triggers inside the same drum
- Independent zone routing – combine or separate head and rim signals
- Expandable modular design – add extra triggers or rim extensions later
- No Hot Spots
- No drilling required
- Tour-ready construction – durable and reliable for rehearsals, studios, and live performance (Metal Bracket, Engineering Grade Housing Materials)
- Compatible with most Drum Modules

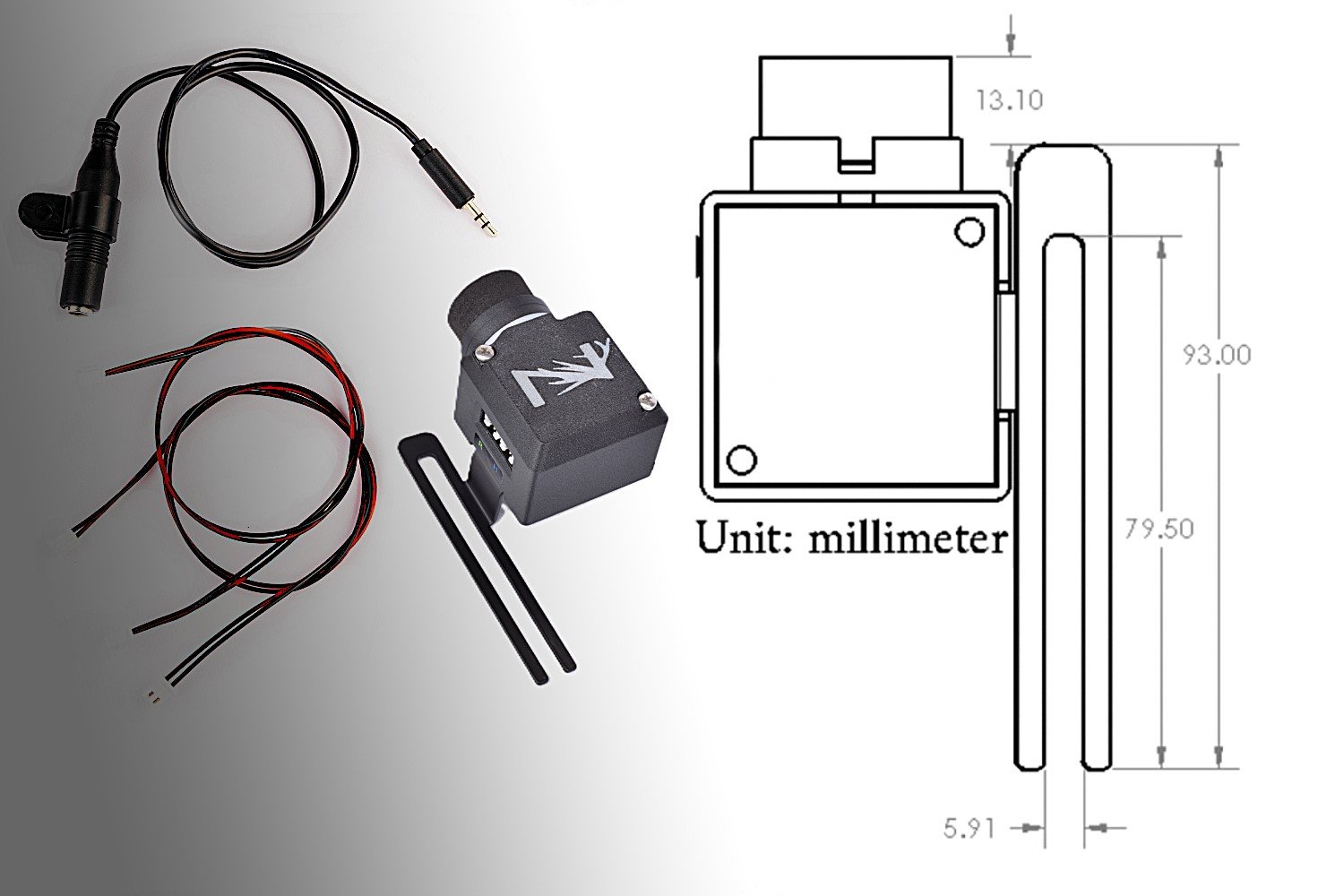

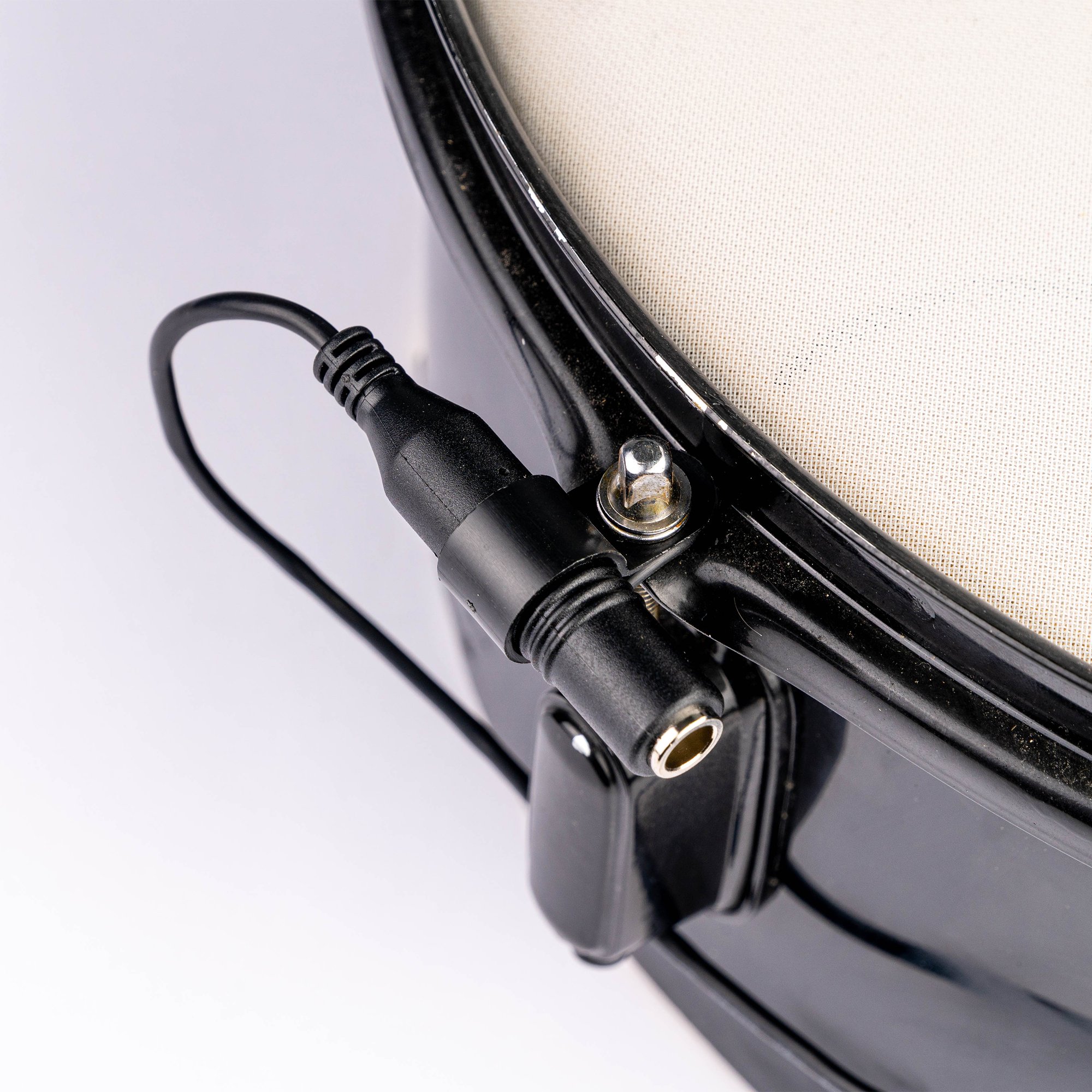

- Comes with 1/4'' female to 3.5mm male Jack Cable and Two Rim/Head-input/output Cables
** (minimum compatible air vent hole diameter=8mm)
